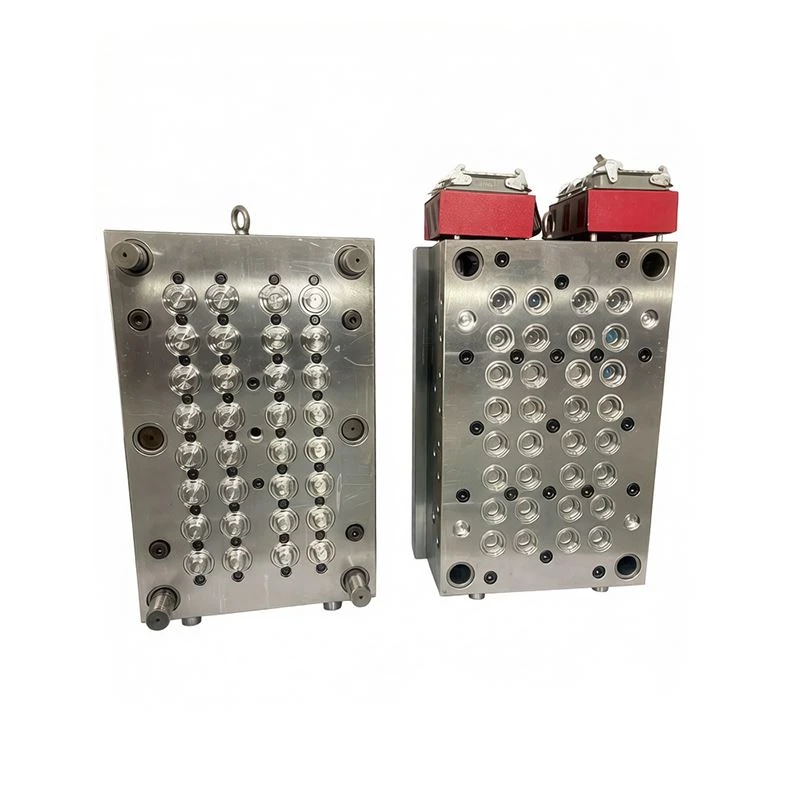

Pressure-Resistant Design for Carbonated Drinks
KENI started making molds more than 15 years ago. Our team has over 60 skilled workers. We use advanced machines from CHARMILLES, DMG, MAZAK, and STUDER. We are ISO certified. Carbonated beverages contain gas. The pressure inside the bottle can reach 0.6MPa or more. Regular preform molds cannot handle this pressure. They may cause the bottle bottom to bulge. They may even cause the bottle to burst. This carbonated beverage preform mold is built specifically for pressure resistance. We design it to keep your bottles safe and strong.
Thickened Wall and High-Strength Steel for Durability
This carbonated beverage preform mold uses a standard neck diameter of Φ28mm. The preform wall thickness is 2.4mm to 3.0mm. This is 0.2mm to 0.4mm thicker than mineral water preforms. The added thickness gives the bottle extra strength. The preform mold has 48 or 64 cavities. The cycle time is 32 to 38 seconds per mold. The cap thread pitch is 1.8mm. This design supports internal bottle pressure of 0.6MPa or higher. The parting line flash is 0.01mm or less. The mold steel hardness is HRC 52 to 56. This hardness ensures long tool life and stable performance. Our sales team will help you choose the right cavity count for your production volume.
Technical Specifications
|
Parameter |
Specification |
|
Standard Neck Diameter |
Φ28mm |
|
Preform Wall Thickness |
2.4 – 3.0mm (thickened for pressure) |
|
Preform Cavities |
48 / 64 cavities |
|
Cycle Time |
32 – 38s/mold |
|
Cap Thread Pitch |
1.8mm |
|
Pressure Resistance Design |
Supports ≥ 0.6MPa internal bottle pressure |
|
Parting Line Flash |
≤ 0.01mm |
|
Mold Steel Hardness |
HRC 52 – 56 |
KENI does a 100% full inspection on every carbonated beverage preform mold. We test the pressure resistance after the customer blows the bottle. We accept third-party inspections. We provide a one-year free warranty. We offer lifetime maintenance. We have a dedicated after-sales team. They do regular follow-up visits with customers. If any damage occurs, we solve it immediately. We also improve our service based on customer feedback. Repeat customers save 7 to 10 days on delivery time. We pack each mold in a custom wooden case. We ship from Ningbo or Shanghai. This product is perfect for soda bottles, sparkling water bottles, beer bottles, and other pressurized beverage packaging.
