Reliable Solution for High-Volume Cap Production
KENI offers a complete solution for your cap production line. We design and manufacture high speed capping machines in our own factory. We started this work in 2015. Our team has more than 60 employees. We use advanced processing equipment. Our products sell well in many countries around the world. The product works like a conveyor belt for your mold. The mold is like a money printer. The capping machine keeps the production moving fast and steady.
Choose the Right Cavity Count for Your Target Output

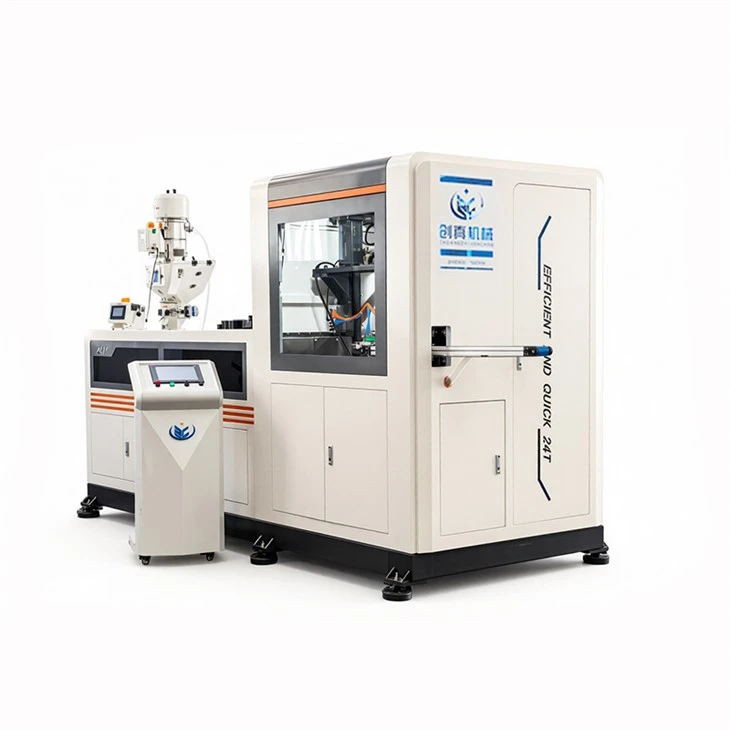

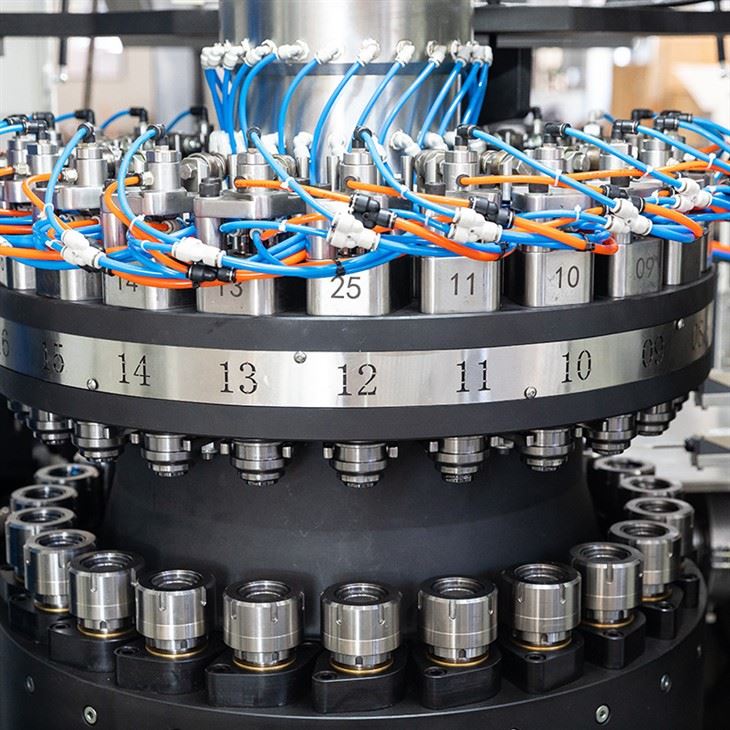

This high speed capping machine comes with 24, 48, or 54 cavities. The 48-cavity model is the most popular choice. It produces about 85,000 caps per hour. The total output range is 24,000 to 100,000 caps per hour. The machine works with cap diameters from Φ20mm to Φ55mm. The standard mineral water cap is Φ28mm. It handles cap heights from 10mm to 30mm. The cap weight range is 4g to 7.5g. The machine uses HDPE or PP food-grade materials. The installed power is 50kW to 85kW. The 48-cavity model uses about 75kW. The mold life reaches over 2 million cycles. The yield rate is 99.5% or higher.
Technical Specifications
|
Parameter |
Specification |
|
Cavities |
24 / 48 / 54 (48 is standard) |
|
Output |
24,000 – 100,000 caps/hour (48-cavity: ≈85,000 caps/hour) |
|
Cap Outer Diameter |
Φ20 – 55mm (mineral water cap: Φ28mm) |
|
Cap Height |
10 – 30mm |
|
Unit Weight |
4 – 7.5g |
|
Material |
HDPE / PP, food grade |
|
Installed Power |
50 – 85kW (48-cavity: ≈75kW) |
|
Mold Life |
≥ 2,000,000 cycles |
|
Yield Rate |
≥ 99.5% |
KENI performs a 100% full inspection on every machine before shipment. We accept third-party inspections as well. We provide a one-year free warranty. We offer lifetime maintenance after the warranty period. Our sales team will recommend the best cavity count and configuration based on your production goals. We have a dedicated after-sales team. They respond quickly to any issues. We use custom wooden cases for shipping. We ship from Ningbo or Shanghai. We accept USD or RMB settlement. Repeat customers can save 7 to 10 days on delivery time. This high speed capping machine is ideal for mineral water caps, beverage caps, daily chemical caps, and edible oil caps.
