Heavy-Duty Design for Large Water Jugs
A 5-gallon water jug holds 18.9 liters. That entire volume depends on one small cap for sealing. The margin for error is tiny. Taizhou KENI Mould Co., Ltd. offers this product with a hot runner as the main design. This ensures stable molding for large caps. Cavity options are 8, 16, or 24. We recommend 16 or 24 cavities for most customers. Cycle time is 12 to 18 seconds per shot. Hot runner gives about 12 seconds. Cold runner takes about 18 seconds. The mold fits 250T to 350T injection machines. For 24 cavities, we recommend 350T. The cavity and core use S136 steel. Hardness is HRC 48 to 52. The mold base uses P20 steel. Tolerance is ±0.02mm. Surface finish is Ra ≤0.4μm. This 5 gallon cap mould lasts at least 1,000,000 shots. High-quality builds can reach 3,000,000 shots.
Hot Runner or Cold – We Guide You
Our 10-person R&D team will study your machine tonnage and output needs. We recommend the best cavity count and runner type for your product. If you run high volume, hot runner gives faster cycles. If you have budget limits, cold runner is acceptable. We explain the pros and cons clearly. During production, we send you progress updates. We also offer after-sales improvements. Every 5 gallon cap mould is 100% inspected before shipping. Flash is kept at ≤0.01mm. We accept third-party inspections. We also offer custom packaging with wooden cases. FOB Ningbo or Shanghai is available. Payment in USD or RMB.
Technical Specifications
|
Parameter |
Specification |
|
Cavities |
8 / 16 / 24 (recommended 16, 24) |
|
Cycle Time |
12 – 18s per shot (hot runner ≈12s, cold ≈18s) |
|
Compatible Injection Machine |
250T – 350T (350T for 24 cavities) |
|
Cavity/Core Steel |
S136, HRC 48 – 52 |
|
Mold Base Steel |
P20 |
|
Tolerance |
±0.02mm |
|
Surface Finish |
Ra ≤0.4μm |
|
Mold Lifespan |
≥1,000,000 shots (high-quality up to 3,000,000) |
|
Runner Type |
Hot runner (mainstream) / Cold runner |

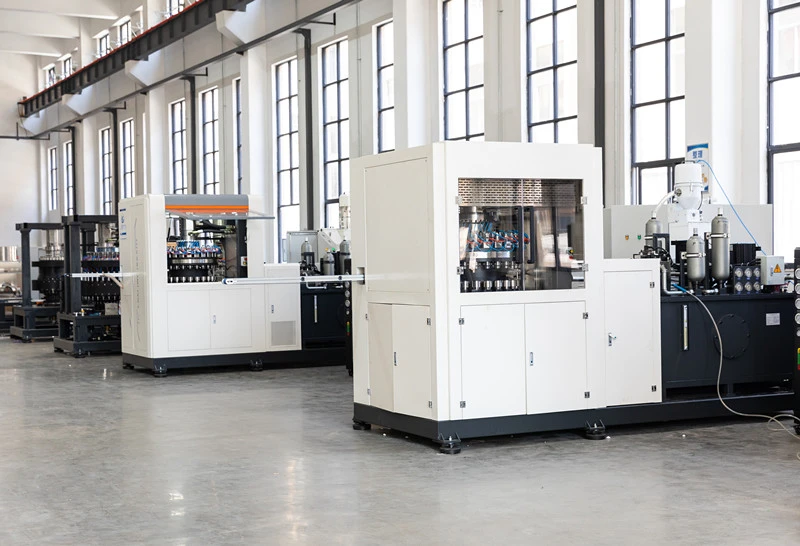

Our factory in Huangyan, Taizhou is equipped with CHARMILLES, DMG, HAAS, and MAZAK machines. This ensures high machining precision. We support OEM and ODM orders. We have a one-year free warranty and lifetime maintenance. Repeat orders save you 7 to 10 days in lead time. Our after-sales team visits customers regularly. They collect feedback to make our 5 gallon cap mould even better. This mold serves 5-gallon bottled water, 18.9L large jugs, and water dispenser caps. We know large caps need extra care. That is why we build every mold with precision and durability in mind.
