Same Standard, Better Adaptability

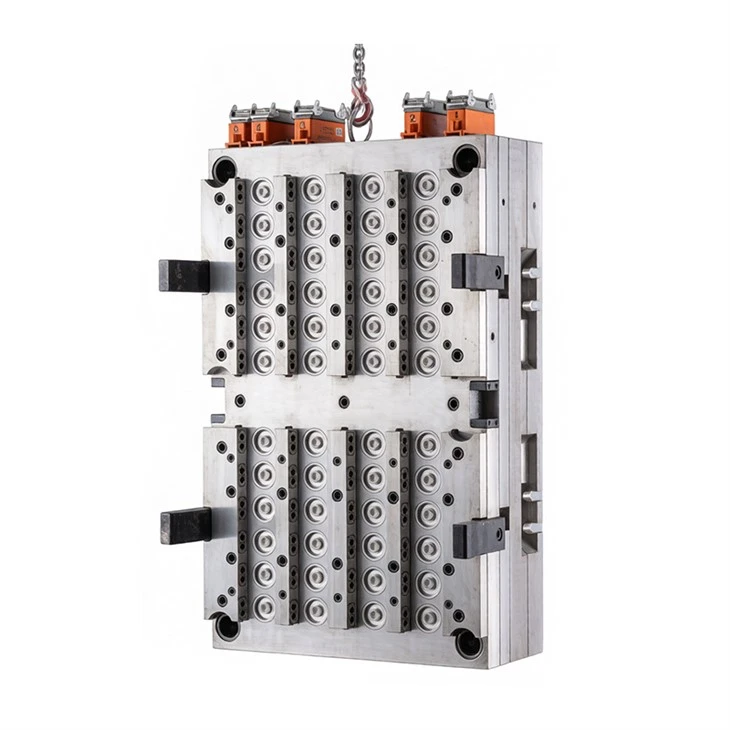

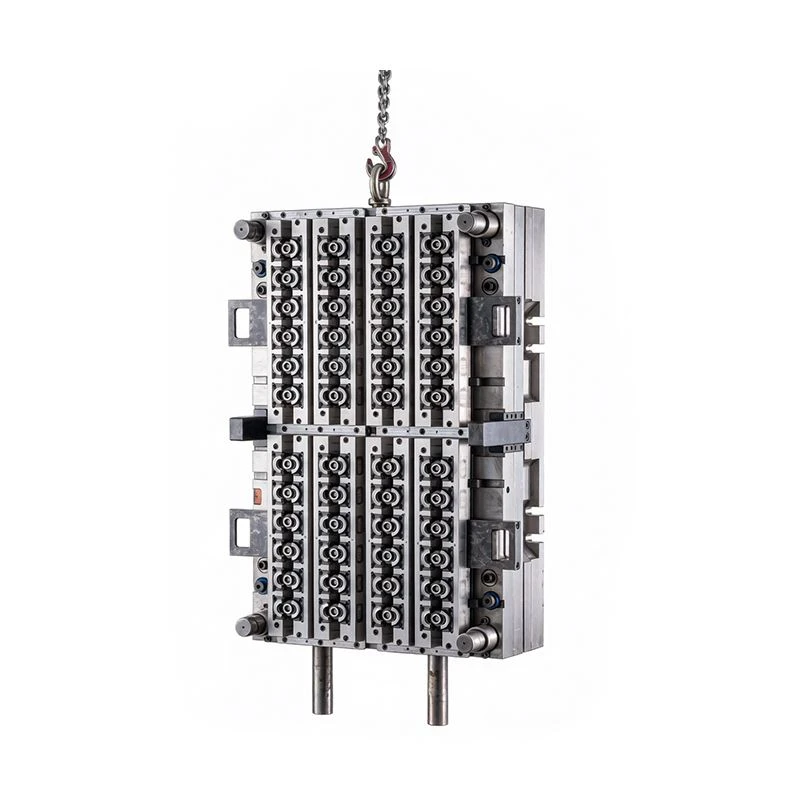

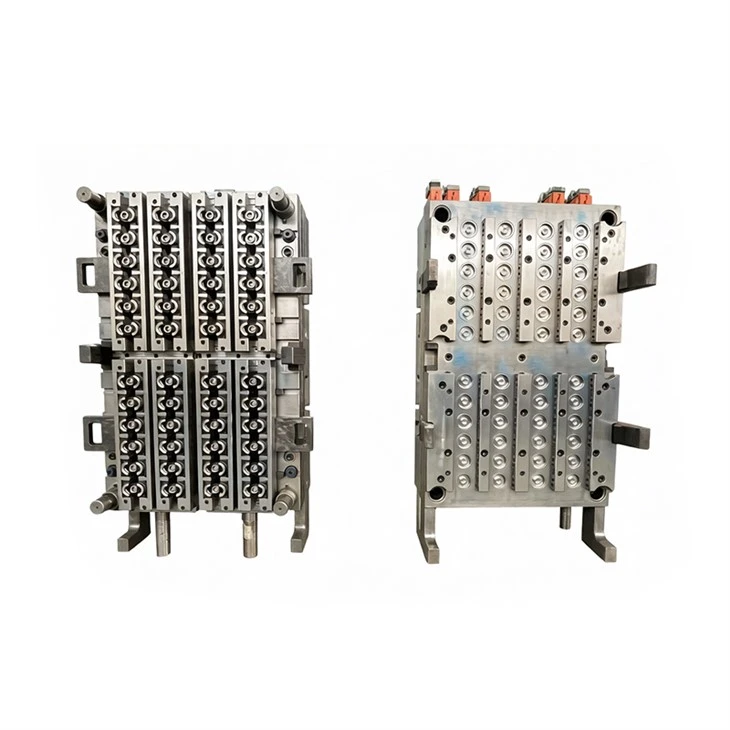

This product keeps the same 28mm standard diameter. It has the same thread pitch of 1.8mm. The tamper-evident band thickness is still 0.4 to 0.6mm. Cap weight is 2.2 to 3.0 grams. Cycle time is 9 to 13 seconds. Cavity options are 16 or 24. So what is different? We optimized the mold structure for faster changeover. If you produce multiple bottle shapes, this product saves you time. You can switch between different preforms or bottle designs quickly. The core parameters remain stable. You get consistent quality without long downtime. This makes our water bottle cap mould ideal for factories that run various bottle types on the same line.
Quick Changeover, Lower Inventory
Our R&D team of 10 engineers studied common production pain points. One major issue is mold changeover time. With this product, we simplified the mounting and adjustment system. You can change sizes or colors faster. We also support mixing colors or models within one order. This lowers your inventory pressure. Custom sample development takes 30 to 60 days. Free samples are negotiable. We offer OEM and ODM services. You can order based on your drawings or prototypes. Bulk orders get discounts. Payment is 40% deposit and 60% before shipping. Every water bottle cap mould has cavity hardness HRC 48 to 52. Flash is kept at ≤0.01mm. Mold life is over 1,000,000 shots.
Technical Specifications
|
Parameter |
Specification |
|
Standard Diameter |
Φ28mm |
|
Thread Pitch |
1.8mm |
|
Tamper-Evident Band Thickness |
0.4 – 0.6mm |
|
Cap Weight |
2.2 – 3.0g |
|
Breakage Force |
8 – 12N |
|
Cycle Time |
9 – 13s per shot |
|
Cavities |
16 / 24 cavities |
We are a factory with over 1,000 square meters and 60+ employees. Our equipment includes CHARMILLES, HARDINGE, and DMG machines. We have a professional quality control department. We check every mold before packing. We also provide a one-year free warranty. After that, lifetime maintenance is available at cost. We have a dedicated person for after-sales follow-up. They visit or call you regularly. They collect your feedback and make continuous improvements. This water bottle cap mould is widely used for mineral water, beverage, and functional drinking water caps. It gives you flexibility without sacrificing quality.
