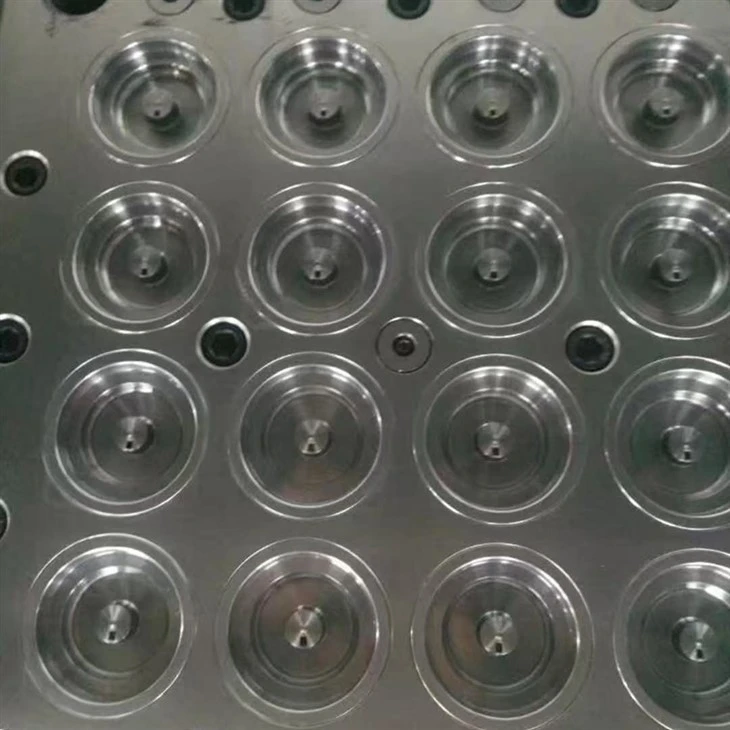

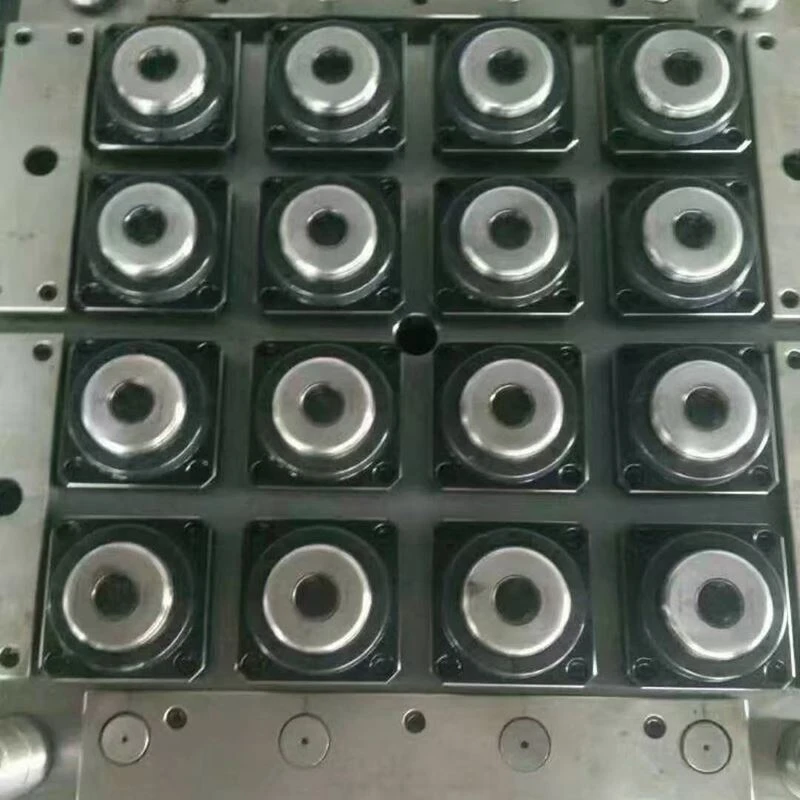

Extra Large Diameter for Heavy Caps
This product handles an even larger cap. The standard diameter is Φ55mm. That is bigger than the regular 5-gallon cap. The thread pitch is 2.5mm. The cap body wall thickness is 1.5 to 1.8mm. This makes the cap thicker and heavier. Cap weight ranges from 26 to 32 grams. The heavier material gives a premium feel. It also offers better sealing performance. Sealing pressure resistance is at least 0.2MPa. This is higher than our standard 5-gallon mold. Cycle time is 18 to 25 seconds per shot. Maximum cavities are 8. This 5 gallon water bottle cap mould fits large-tonnage machines from 380T to 450T. It is built for heavy-duty production.
Built for High-Pressure Sealing
We designed this 5 gallon water bottle cap mould for high-end bottled water and special liquid packaging. The thicker wall ensures no deformation under pressure. The coarser thread holds tight even with vibration during transport. Our quality team inspects every sealing surface. We test each batch for pressure resistance. We also check wall thickness uniformity. Flash is controlled at ≤0.01mm. Cavity and core materials are high-grade steel. We accept third-party inspections. Before shipping, we do a 100% check on all parameters. If any damage occurs during transport, we solve it immediately. We offer a one-year free warranty and lifetime maintenance.
Technical Specifications
|
Parameter |
Specification |
|
Standard Diameter |
Φ55mm |
|
Thread Pitch |
2.5mm |
|
Cap Body Wall Thickness |
1.5 – 1.8mm |
|
Cap Weight |
26 – 32g |
|
Sealing Pressure Resistance |
≥0.2MPa |
|
Cycle Time |
18 – 25s per shot |
|
Maximum Cavities |
8 cavities |
|
Compatible Injection Machine |
380T – 450T |
Our factory covers over 1,000 square meters. We have 60+ employees. We are ISO certified and follow environmental regulations. We support OEM and ODM orders. You can order based on drawings or prototypes. Free samples are negotiable. Our sales team will evaluate your injection machine tonnage and material type before recommending the right configuration. During production, we track progress and send you updates. After delivery, we follow up and improve based on your feedback. This 5 gallon water bottle cap mould is ideal for premium bulk water, large-capacity liquid containers, and industrial drums. We know heavy caps need heavy-duty molds. That is exactly what we deliver.
