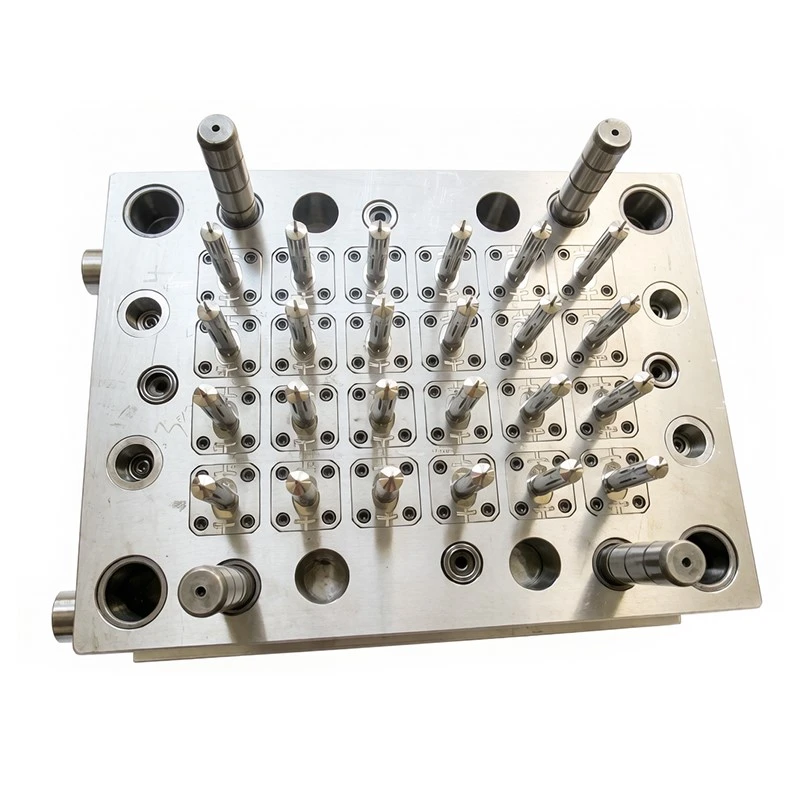

What defines a high-quality preform mold? What factors influence the choice of a hot runner nozzle? Technical experts point to a range of considerations: product quality, product design, plastic raw materials, mold specifications, cycle times, gate types, nozzle characteristics, runner design, temperature control systems, and injection molding machine performance. A precise understanding of these factors enables the selection of the appropriate hot runner nozzle. How does one correctly select a preform mold?
1. Product weight: Products of different weights impose vastly different requirements on the hot runner system.
2. Plastic raw materials: Different plastic materials involve distinct processing variables, which in turn influence the choice of the hot runner system.
3. Mold: Factors such as the number of cavities, nozzle spacing, and the material being processed are all mold-related elements that affect the configuration of the hot runner system.
4. Cycle time: Rapid production cycles place higher demands on the nozzle; for instance, the nozzle must transfer heat accurately and demonstrate high durability.
5. Gate: For point gates, the nozzle tip must be capable of both melting the material and facilitating cooling to seal the gate, ensuring thermal balance throughout each molding cycle. In contrast, valve gates utilize a mechanical method to seal the gate.
6. Nozzle: Nozzles are generally categorized based on dimensions, temperature distribution, physical characteristics, materials used (e.g., copper, steel), ease of maintenance, and cost.
7. Runner: The use of a hot runner system eliminates the formation of runners (or "sprues"), thereby saving raw material and removing the need for manual, robotic, or other post-processing steps to detach the runner waste. 8. Temperature control: Each nozzle must be connected to a sophisticated temperature controller.
9. Injection molding machine performance: Capability to accommodate a mold of the specified size, provide sufficient clamping force, operate within cycle time requirements, plasticize adequate material, etc.
10. Product design: Generally, product design is completed first, yet the final molding takes place within the hot runner mold. To ensure a smooth product surface and easy demolding upon completion of the molding process, these factors must be taken into account during the product's structural design.
