Ideal for Soft, Biocompatible Products

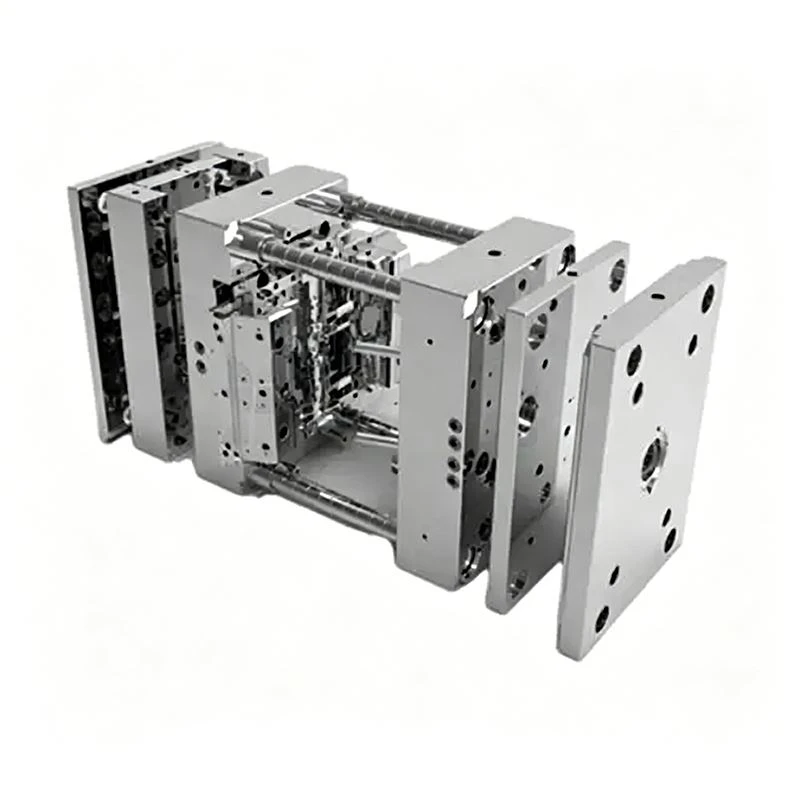

Liquid silicone rubber (LSR) offers biocompatibility and a soft touch. It is perfect for medical consumables. Taizhou KENI Mould Co., Ltd. designed this Liquid silicone rubber mould for high‑cleanliness and high‑precision medical devices. Cavity steel is S136 or 316L. Hardness is HRC 52 to 56. Dimension tolerance is ±0.01mm, but you must consider LSR shrinkage of 0.5 to 2%. Surface finish is Ra ≤0.05μm for easy demolding. Mold temperature is 60 to 90℃ with ±1℃ stability. Injection pressure is 80 to 120 bar. Curing time is 15 to 30 seconds per shot. Minimum wall thickness can be 0.3 to 0.5mm. This Liquid silicone rubber mould meets ISO 10993 and USP Class VI biocompatibility standards.
We Master Cold Runner and Temperature Control
Our 10‑person R&D team has solid experience with LSR molds. We understand cold runner design. We know temperature control is critical. Before we build your Liquid silicone rubber mould, we discuss your silicone grade and hardness needs. We give you a reliable proposal. Every mold gets 100% inspection before shipping. We accept third‑party inspections. We offer a one‑year free warranty and lifetime maintenance. If shipping damage occurs, we fix it first. Our after‑sales team visits you regularly. Repeat orders save 7 to 10 days.
Technical Specifications
|
Parameter |
Specification |
|
Cavity Steel |
S136 / 316L, HRC 52 – 56 |
|
Dimension Tolerance |
±0.01mm (LSR shrinkage 0.5‑2%) |
|
Surface Finish |
Ra ≤0.05μm (for easy demolding) |
|
Mold Temperature |
60 – 90℃ (stable ±1℃) |
|
Injection Pressure |
80 – 120 bar |
|
Curing Time |
15 – 30s per shot |
|
Minimum Wall Thickness |
0.3 – 0.5mm |
|
Certifications |
ISO 10993, USP Class VI |
We have over 15 years of experience and a 10‑person R&D team. Our factory uses high‑precision machines. We are ISO certified and meet medical standards. Our quality department checks every Liquid silicone rubber mould before packing. Packaging uses custom wooden cases. FOB Ningbo or Shanghai is available. Payment in USD or RMB. This mold serves silicone face masks, catheters, seals, baby nipples, and other LSR medical consumables. We know that LSR requires special expertise. Our team has that expertise. We are ready to support your medical device production.
